A winch can make a difficult recovery or heavy pull much easier. But even a capable winch can be damaged by the way it is installed, rigged, or operated. A few minutes of preparation can help protect the motor, cable, mounting hardware, and the equipment you are moving.
Here are seven common mistakes to watch for before your next pull.
1. Exceeding the winch’s rated capacity
A winch’s advertised capacity is not a target for every pull. The force required can rise when a load is stuck, rolling uphill, or dragging across uneven ground. A sudden jerk can also put more force on the system than a steady pull.
Check the ratings of the entire setup: the winch, rope or cable, hook, straps, shackles, and anchor point. Follow the winch manufacturer’s instructions for your application, and stop if the load does not move as expected. Continuing to pull can damage components even when the load itself appears to be within the winch’s rating.
2. Pulling at a sharp side angle
When the cable enters the drum at a steep angle, it can pile up on one side. Uneven spooling can pinch or damage the cable and put unnecessary stress on the winch.
Whenever possible, position the winch for a straight pull. If the job requires a change in direction, use correctly rated rigging equipment and follow its instructions. Watch how the cable winds onto the drum throughout the pull; pause and correct an uneven wrap before it becomes a problem.
3. Ignoring a worn rope or cable
A frayed synthetic rope, kinked wire cable, damaged hook, or loose connection is more than a maintenance issue. Under tension, a damaged part may fail.
Inspect the winch line and rigging before use. Look for broken wire strands, flattened sections, cuts, abrasion, heat damage, corrosion, and damaged hardware. Replace components according to the manufacturer’s guidance. Never try to repair a damaged line with a knot or continue using it because “it held last time.”

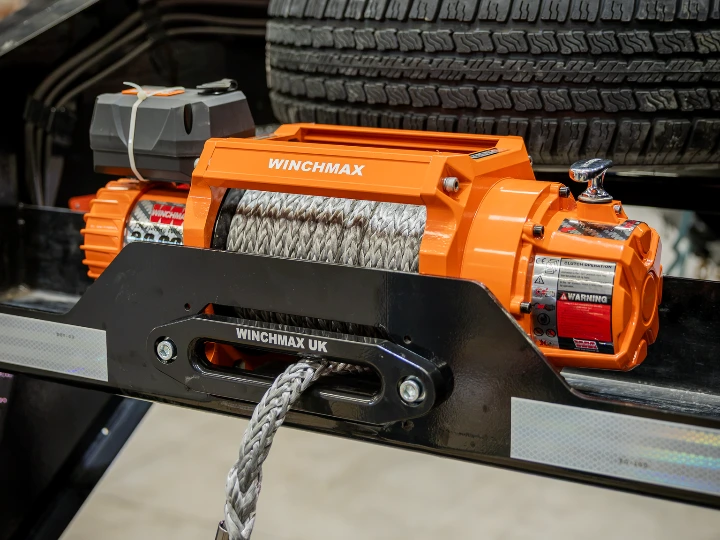

4. Mounting the winch to an unsuitable surface
The winch can only work as well as its mounting point. A weak mounting plate, incorrect fasteners, or loose bolts can shift under load and damage both the winch and the vehicle or equipment carrying it.
Use a mount designed and rated for the winch and application. Follow the specified bolt grade, installation pattern, and torque requirements. Recheck the mounting hardware periodically, especially after demanding pulls.
5. Running the winch too long without a break
Many electric winches are designed for intermittent use. A long, difficult pull can heat the motor and electrical components. If the winch slows down or becomes unusually hot, forcing it to continue can shorten its service life.
Follow the duty cycle in your model’s manual. Work in shorter pulls when required, allow the winch to cool, and make sure the battery, wiring, and connections meet the manufacturer’s specifications.
6. Letting the cable spool loosely or unevenly
Loose wraps can bury themselves beneath tighter wraps during the next pull. This can bind or damage the line and make it difficult to spool out later.
Keep appropriate tension on the line while spooling it in, guide it as directed by the manufacturer, and check that it lays evenly across the drum. Keep hands clear of the fairlead, hook, and moving line. Also maintain the minimum number of wraps on the drum specified for your winch and rope type.
7. Using the winch for a job it was not designed to do
A pulling winch is not automatically approved for lifting, suspending, or securing a load during transport. Using it outside its intended purpose can damage the equipment and create a serious hazard.
Before each job, confirm that the winch and every accessory are rated for the specific task. Use dedicated lifting or load securement equipment when the job calls for it, and follow the instructions for that equipment.
Protect your winch before the next pull
Most winch problems start before the motor turns on: an underrated component, a poor angle, a worn line, or an overlooked mounting point. Inspect your setup, plan the pull, and follow the manual for your specific model. If something binds, shifts, or sounds unusual, stop and reassess.
